€2,138.00
The Mavimare GE 180 is a heavy-duty hydraulic steering system designed for heavy work boats. It delivers a maximum torque of 180 kgm at 35 degrees. The system includes a pump with 14 plungers and a displacement of 70 cm3, paired with a cylinder displacing 340 cm3. The cylinder has an internal diameter of 50 mm and a stroke of 215 mm. Complete with two 7.5-meter hoses that can be customised using h
Category : outboards motors for sale
SKU : c6fdb38f
Tags : GE 180 steering, heavy work boat steering, hydraulic boat steering, hydraulic steering system, marine hydraulic steering, Mavimare GE 180, Mavimare steering

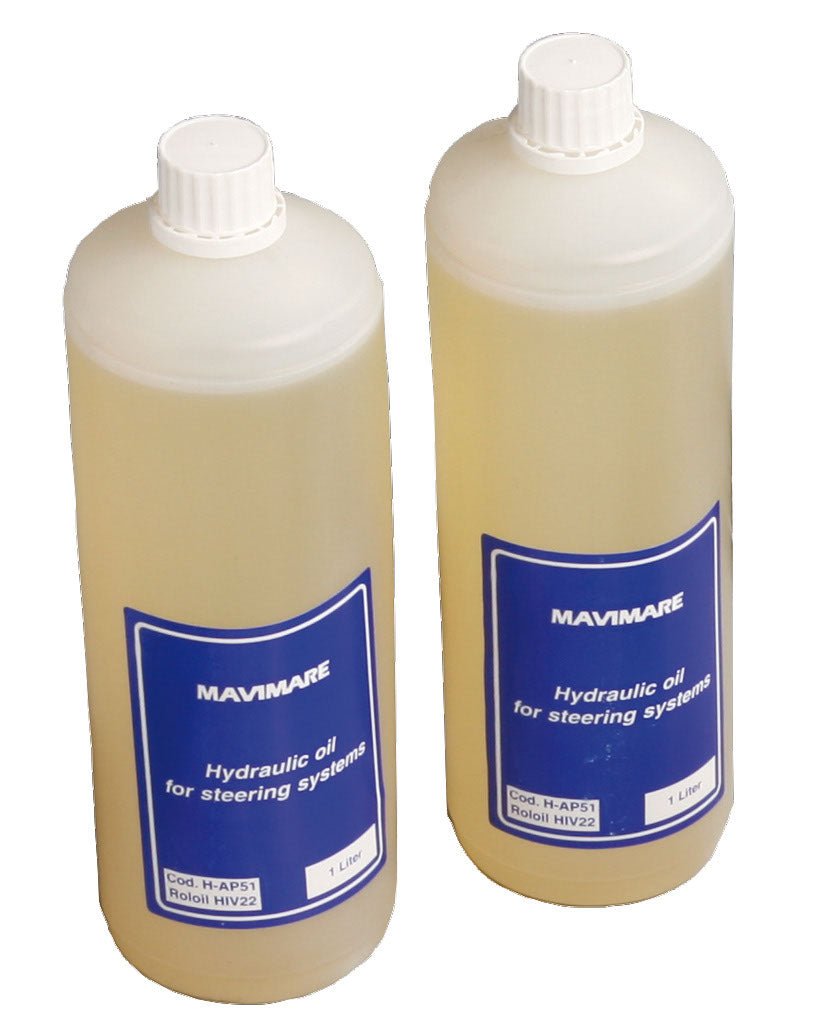

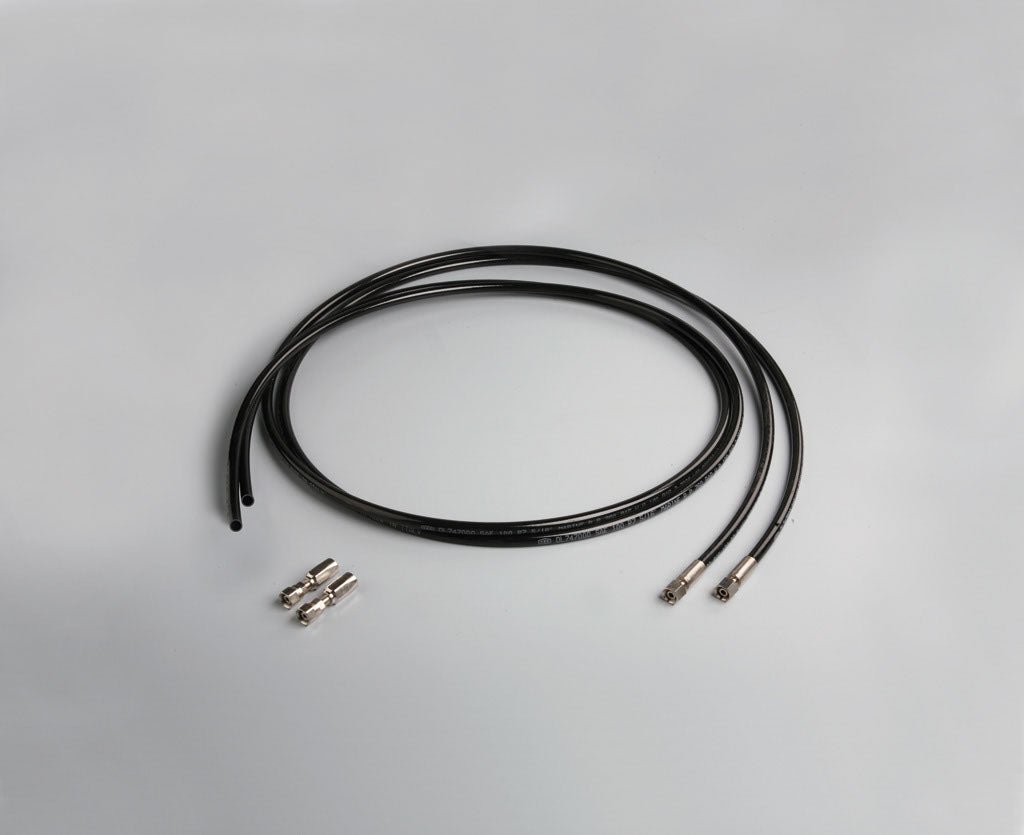

Brand: MavimareThe Mavimare GE 180 is a heavy-duty hydraulic steering system designed for heavy work boats. It delivers a maximum torque of 180 kgm at 35 degrees. The system includes a pump with 14 plungers and a displacement of 70 cm3, paired with a cylinder displacing 340 cm3. The cylinder has an internal diameter of 50 mm and a stroke of 215 mm. Complete with two 7.5-meter hoses that can be customised using heavy-duty clamp couplings. The package includes hydraulic pump, steering cylinder, hoses, three bottles of hydraulic oil, a bleed hose, all mounting hardware, and an English installation manual. Designed for easy DIY installation.
| Type | GE 180 |
| Pump Weight | 7.5 kg |
| Pump Displacement | 70 cm3 |
| Max Pump Pressure | 80 bar |
| Number of Plungers | 14 |
| Cylinder Volume | 340 cm3 |
| Internal Cylinder Diameter | 50 mm |
| Cylinder Stroke | 215 mm |
| Cylinder Weight | 12 kg |
| Max Torque | 180 kgm at 35 degrees |
| Weight | 55.12 lbs |
|---|---|
| Dimensions | 23.62 × 15.75 × 11.81 in |
| Brand | Mavimare |
