€935.00
The Mavimare GE 50 is a heavy-duty hydraulic steering system designed for boats measuring 6 to 10 meters. Its pump and cylinder are constructed from aluminum and R.V.S 316 stainless steel, with A4 quality bolts and nuts ensuring seawater resistance. The system delivers a maximum operating pressure of 80 bar, with hoses rated at 200 bar (300 bar test pressure). The pump features a pressure relief v
Categories : Mavimare, Outboards Motors For Sale
SKU : e8f59f1e
Tags : 6-10m boat steering, boat steering system, hydraulic steering, hydraulic steering kit, marine steering, Mavimare GE 50, outboard steering

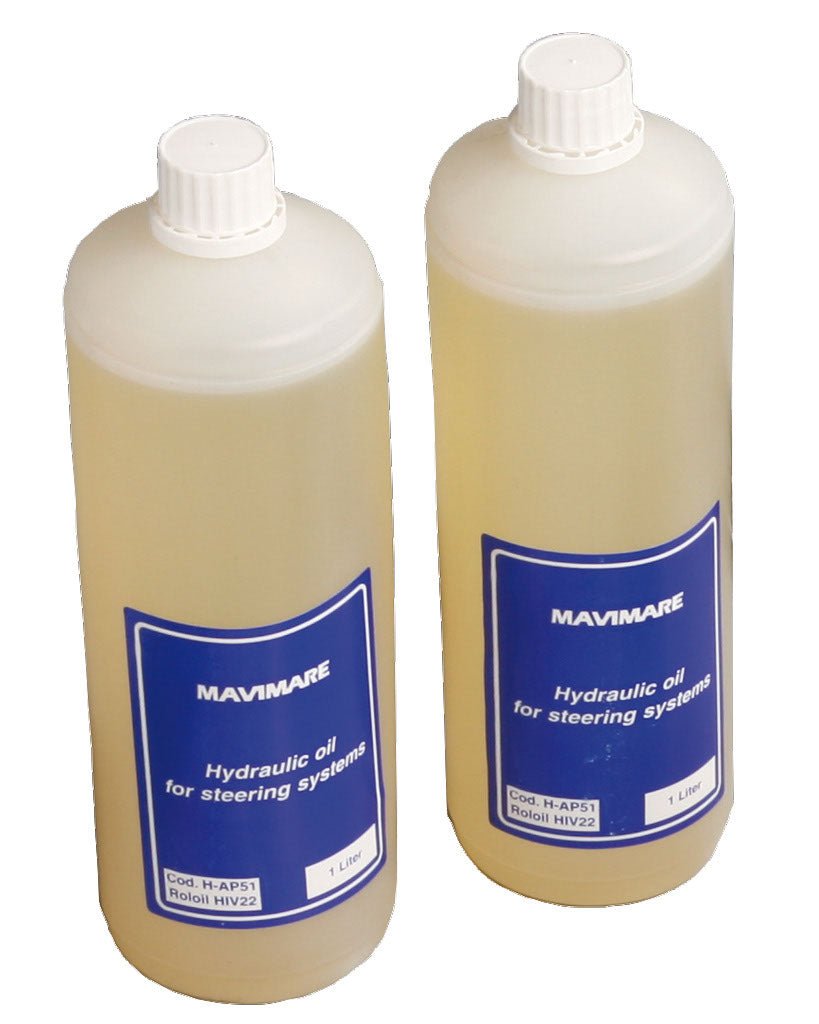

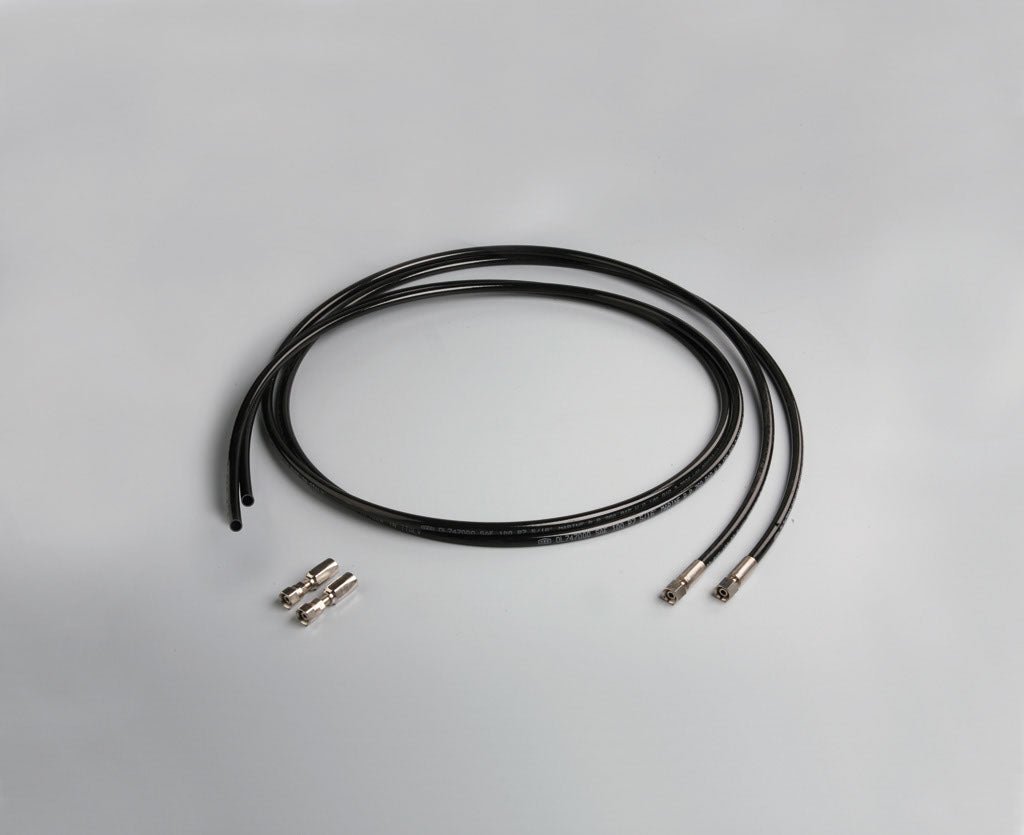

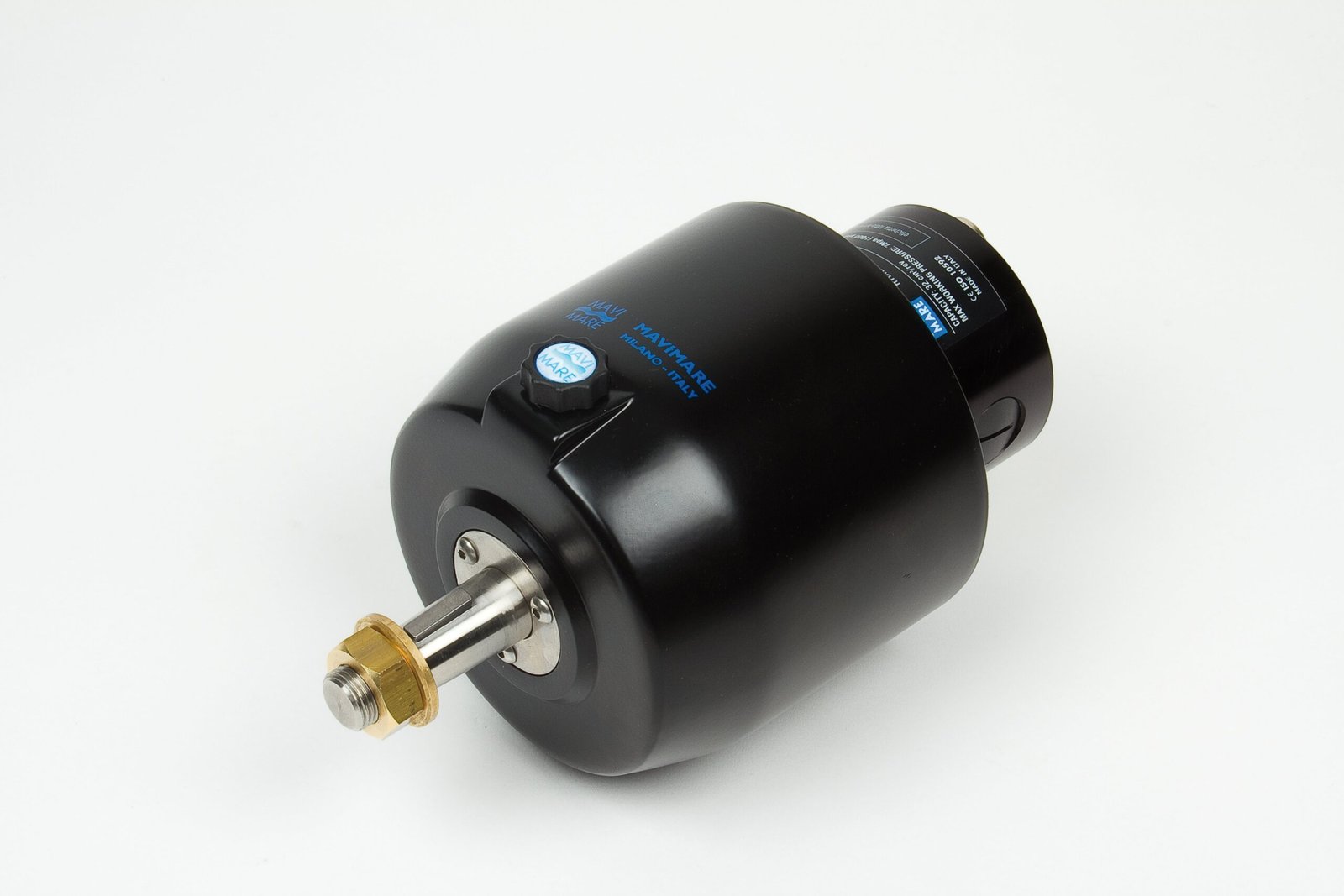

Brand: MavimareThe Mavimare GE 50 is a heavy-duty hydraulic steering system designed for boats measuring 6 to 10 meters. Its pump and cylinder are constructed from aluminum and R.V.S 316 stainless steel, with A4 quality bolts and nuts ensuring seawater resistance. The system delivers a maximum operating pressure of 80 bar, with hoses rated at 200 bar (300 bar test pressure). The pump features a pressure relief valve and non-return valves. The complete kit includes a steering pump (recess-mountable), steering cylinder, two 7.5-meter hydraulic hoses, two bottles of hydraulic oil, a bleed hose, all mounting hardware, and an English installation manual.
| Brand | Mavimare |
| Model | GE 50 |
| Pump Weight | 3.4 kg |
| Max Pump Pressure | 70 bar |
| Max Hose Pressure | 200 bar |
| Number of Pistons | 7 |
| Pump Displacement | 27 cm³ |
| Cylinder Displacement | 101 cm³ |
| Steering Wheel Turns | 3.7 |
| System Operating Pressure | 80 bar |
| Weight | 11.02 lbs |
|---|---|
| Dimensions | 23.62 × 15.75 × 11.81 in |
| Brand | Mavimare |
