Product Details

Description

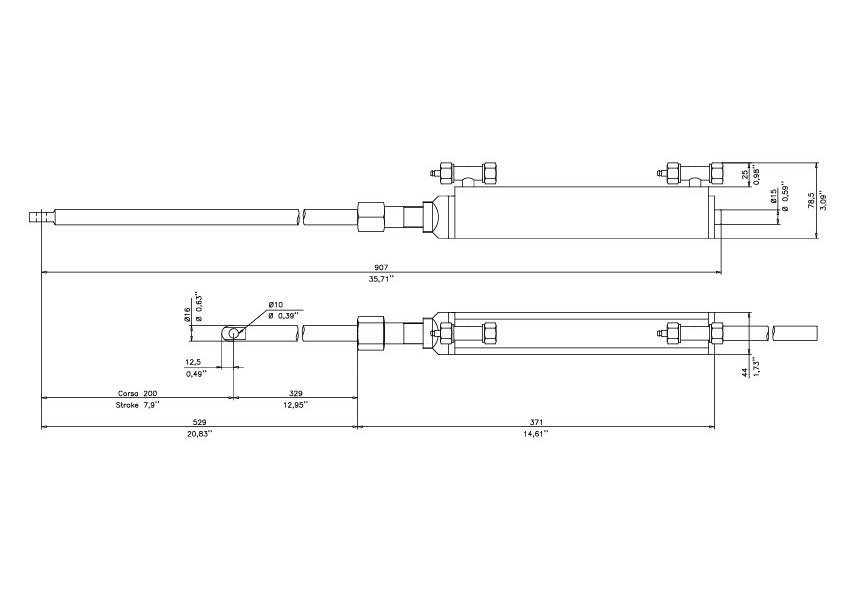

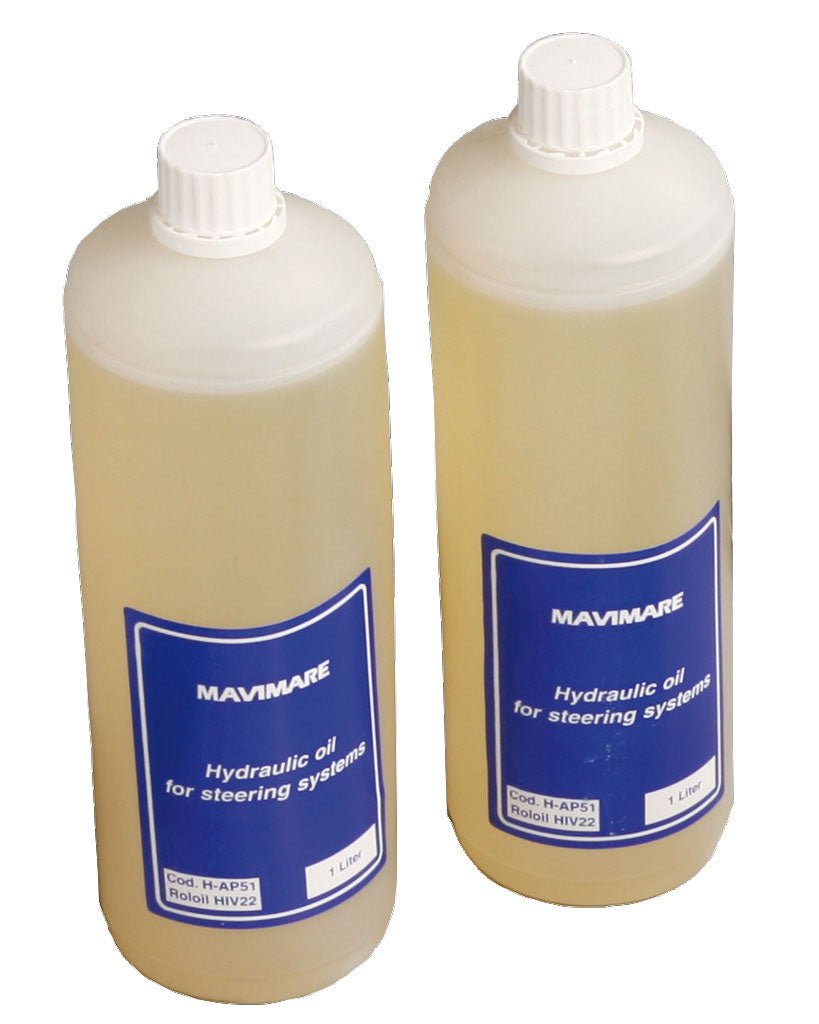

The Mavimare GF 150 BET is a heavy-duty hydraulic steering system designed for inboard motors with stern drive power assist. Constructed from aluminum and RVS 316 stainless steel with A4 grade bolts and nuts, it offers excellent seawater resistance for marine use. This system is specifically engineered for engines with power assist and is compatible with Mercruiser 1, Alpha I, Bravo I, Bravo II, and Bravo III stern drives. The pump features 7 plungers with a displacement of 27 cm³, a maximum pressure of 70 bar, and requires 3.2 turns lock-to-lock. The cylinder has a volume of 88 cm³. Supplied complete with 2 x 7.5 metre hydraulic hoses that can be cut to length using heavy-duty clamp couplings, a steering cylinder, two bottles of hydraulic oil, a bleed hose, all mounting hardware, and an English installation manual. The steering pump can also be recess-mounted.
