Product Details

Description

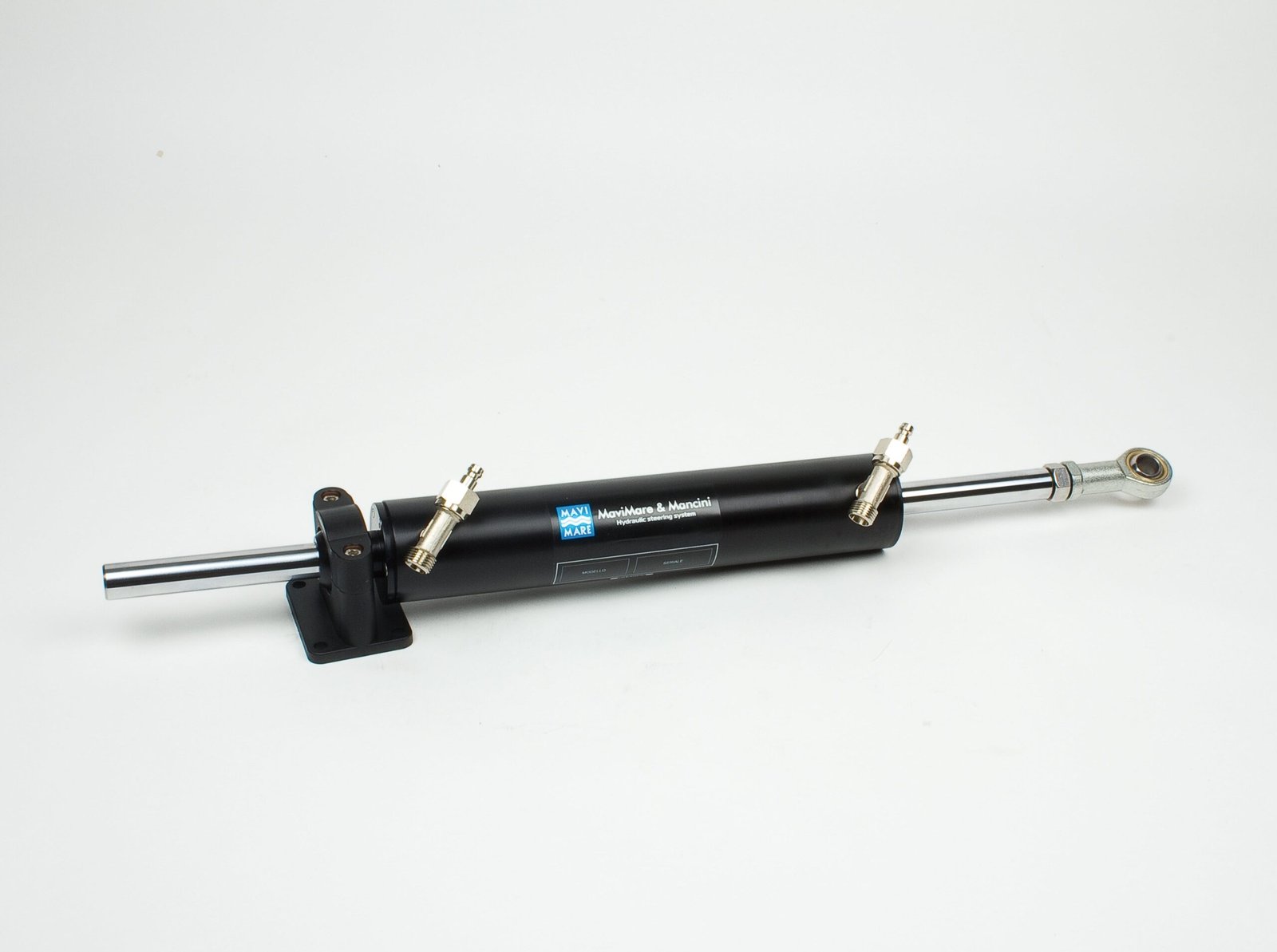

The Mavimare CE 50 hydraulic steering cylinder delivers 50 kgm of torque at 70 bar for precise marine steering control. Its compact design integrates seamlessly into boat steering systems. The piston rod is constructed from seawater-resistant AISI 316 stainless steel, while the cylinder body and mounting foot are made from seawater-resistant brass for long-lasting durability. A universal mounting plate and rotatable head compensate for alignment errors during installation. Supplied complete with hose connections and non-leaking bleed valves for easy system bleeding. Rubber seals protect the piston rod and piston from contaminants. With a 101 cm³ displacement, 32 mm internal diameter, and 150 mm stroke, this cylinder offers reliable performance for vessels requiring moderate steering force. Maximum operating pressure is 80 bar. Cylinder weight is 2.0 kg.
