€423.00

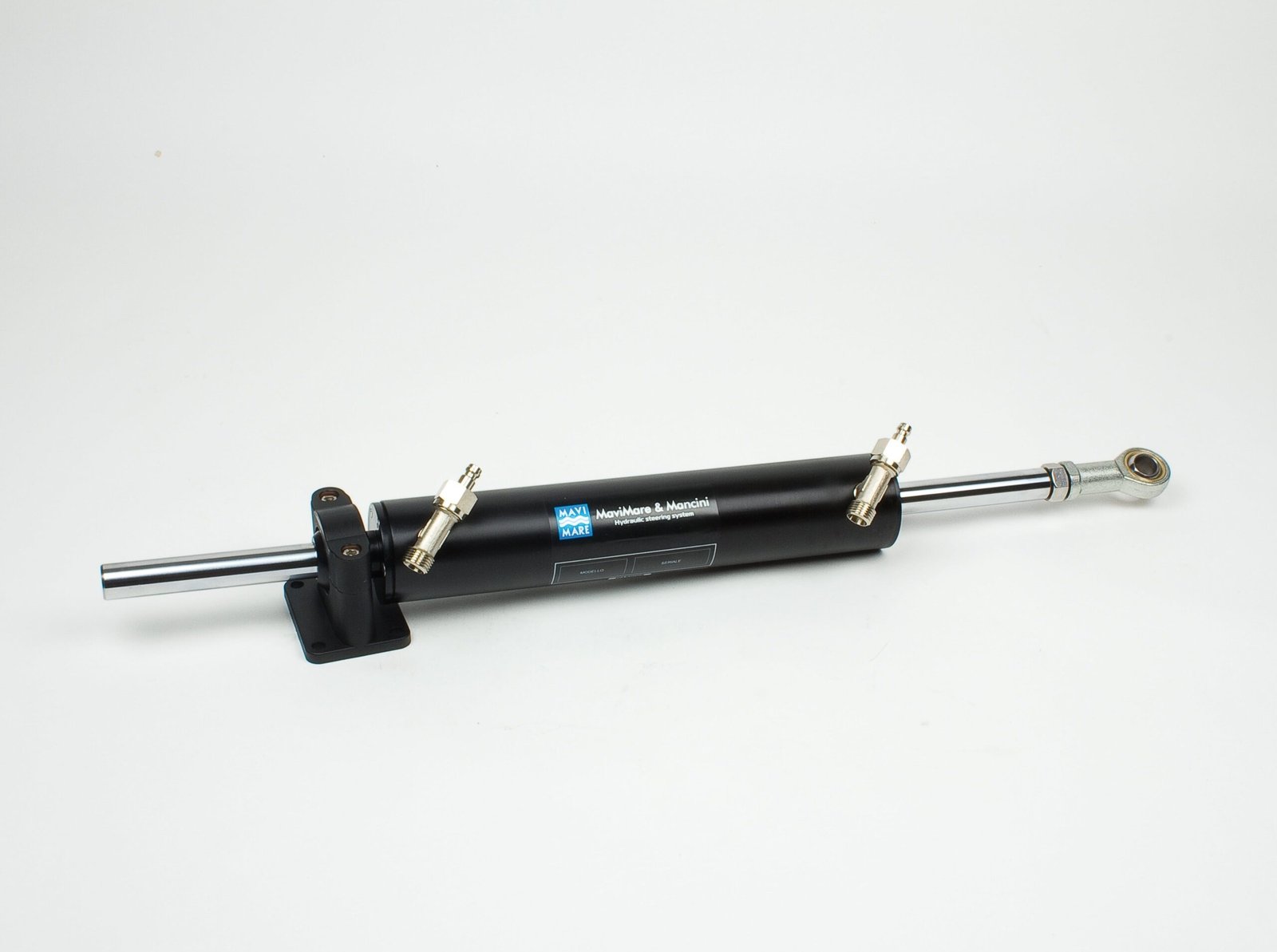

The Mavimare CE 75 is a compact hydraulic steering cylinder designed for marine applications. It features a 128 cm³ displacement, 32 mm internal diameter, and delivers a maximum torque of 75 kgm at 35 degrees (70 bar). The stroke length is 215 mm with a maximum operating pressure of 80 bar. Constructed with a stainless steel AISI 316 piston rod for seawater resistance, the cylinder body and mounti
Categories : Mavimare, Outboards Motors For Sale
SKU : 4f7c929e
Tags : AISI 316, buitenboordmotor stuurcilinder, CE 75, hydraulische stuurcilinder, maritiem stuur systeem, Mavimare, roermoment 75 kgm, zeewaterbestendig
Brand: MavimareThe Mavimare CE 75 is a compact hydraulic steering cylinder designed for marine applications. It features a 128 cm³ displacement, 32 mm internal diameter, and delivers a maximum torque of 75 kgm at 35 degrees (70 bar). The stroke length is 215 mm with a maximum operating pressure of 80 bar. Constructed with a stainless steel AISI 316 piston rod for seawater resistance, the cylinder body and mounting foot are made of seawater-resistant brass. Supplied complete with hose connections and leak-proof bleed valves for easy bleeding. Includes a universal mounting plate and swivel head to accommodate misalignment, plus rubber sealing boots for the piston rod and piston.
| Type | CE 75 |
| Displacement | 128 cm³ |
| Internal Diameter | 32 mm |
| Maximum Torque | 75 kgm at 35° (70 bar) |
| Stroke Length | 215 mm |
| Maximum Pressure | 80 bar |
| Weight | 2.8 kg |
| Piston Rod Material | Stainless Steel AISI 316 |
| Cylinder Body Material | Seawater-resistant Brass |
| Weight | 6.17 lbs |
|---|---|
| Dimensions | 11.81 × 5.91 × 5.91 in |
| Brand | Mavimare |
